Products Test

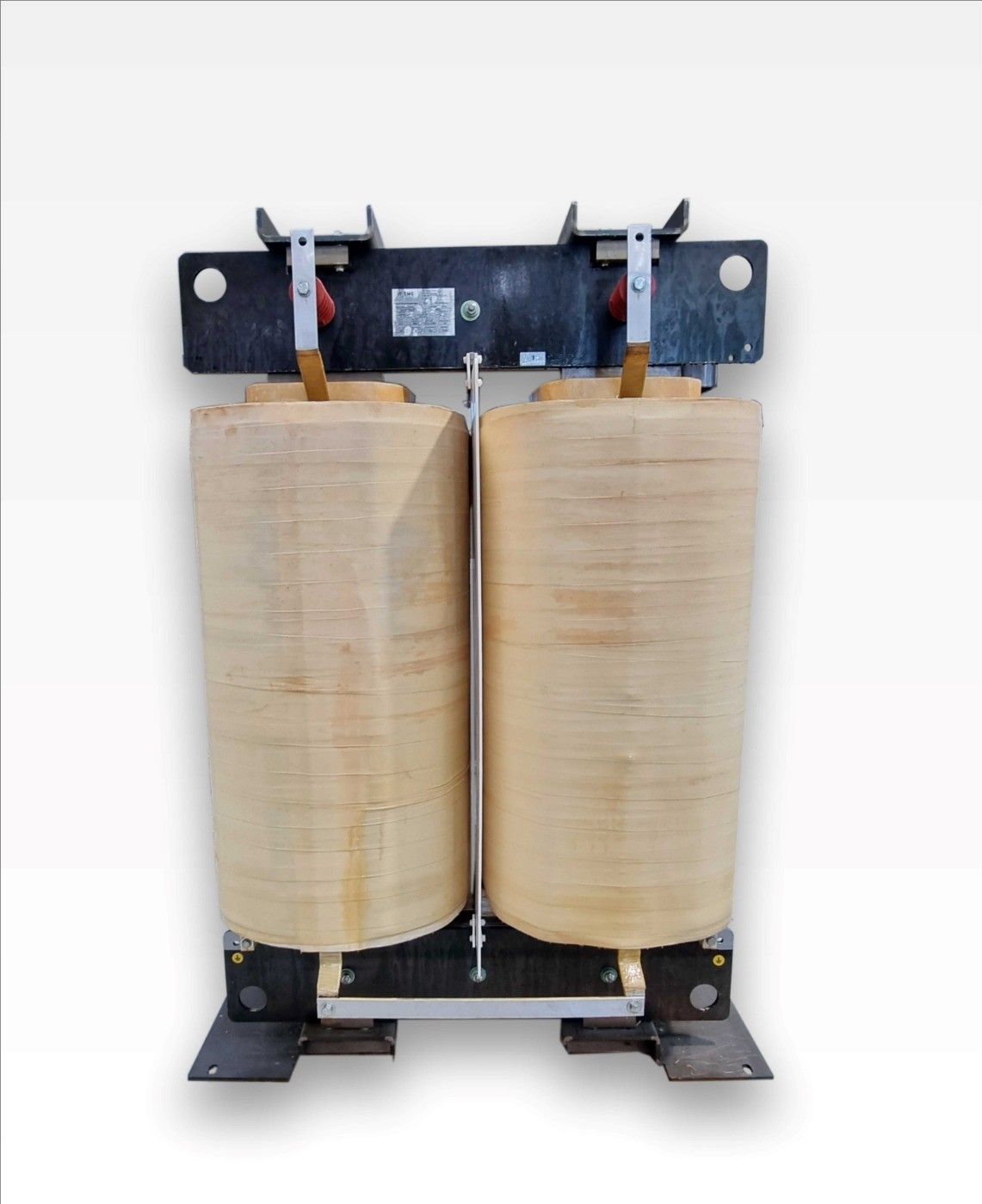

• Power: 1065kvar
• Rated Voltage: 6000V
• Insulation level: 7,2/20/60
• Insulation class: 180
• Cooling: AA
• Frequency: DC + ripple 300Hz
• Weight: 2.500kg

An example of a successful product:

• Power rating: 2500kVA
• Compact design
• K13 harmonic profile
• Electrostatic screen

Power: 4000kVA

Primary Voltage: 33kV

Two secondary windings – coupled windings

Extra heavy traction duty

An example of success:

• Nominal power: 950kVA three-phase
• K factor: 4
• Frequency: 50Hz
• Voltage: ±2 x 2,5% 400/400 V
• Cooling: air-natural (AA)
• Basic Impulse Level: 10kV
• Winding Material: aluminum
• Electrostatic Screen P/S: double, to reduce noise (EMC)

• Up to 1000kVA
• 3 phase or single phase
• Primary up to 34.5kV and 150kV BIL
• Secondary below 1.2kV
• Completely sealed enclosure
• Non-flammable and self-extinguishing
• Gas overpressure device
• External tap changer for voltage regulation
• According to IEEE, CSA, ANSI Standards.

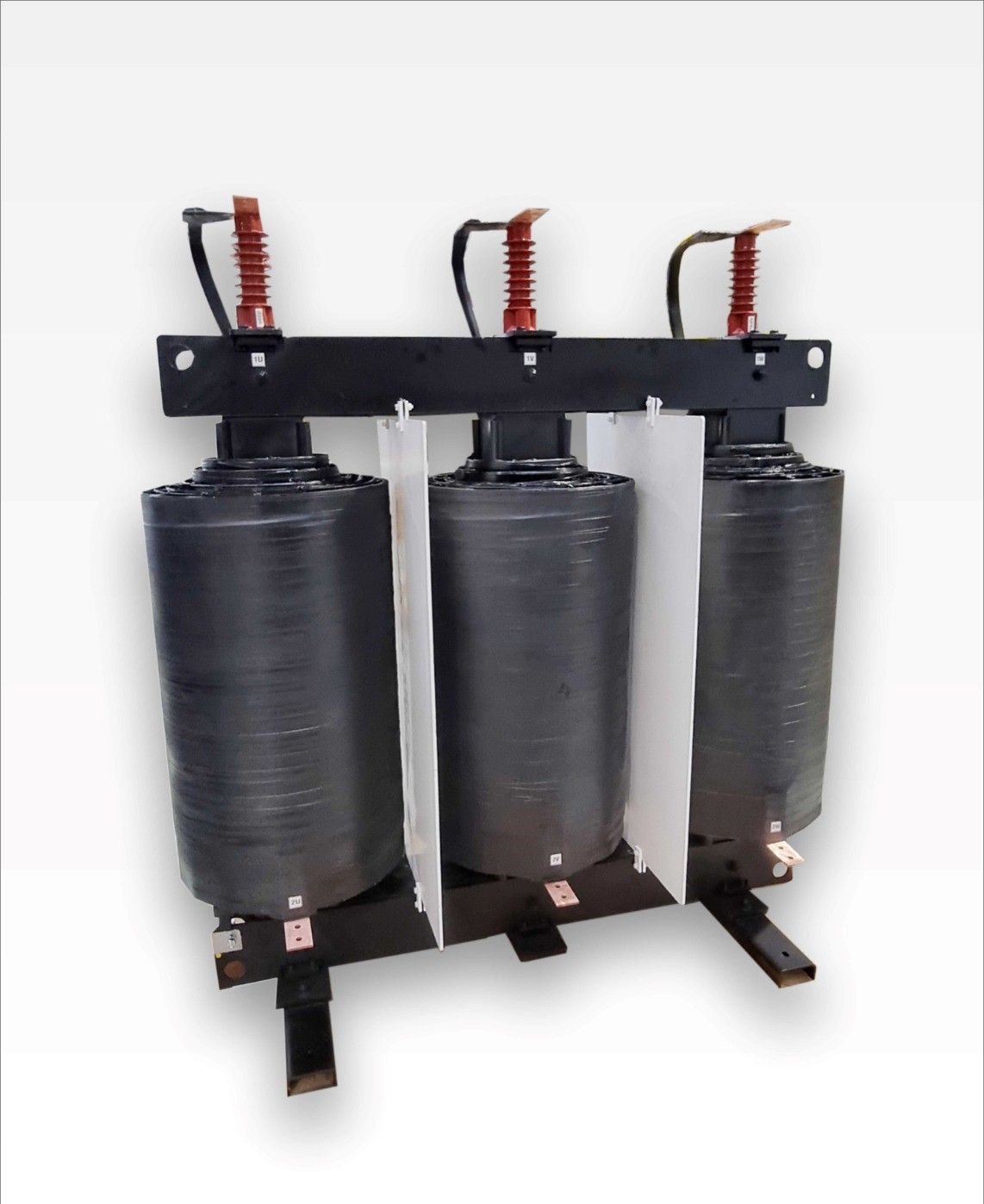

• Voltage: 11.000V
• Insulation level: 17,5/38/95
• Insulation class: 180
• Cooling: AA
• Frequency: 50 Hz + 250 Hz tuning frequency
• Weight: 2000Kg
