Medium voltage transformers | medium voltage current transformers

At TMC, we produce medium-voltage VPI distribution transformers and special transformers with powers up to 25MVA and voltages up to class 34.5 (up to 200kV BIL). These products must typically have 220 thermal class.

The insulation consists of aramid materials applied with double VPI cycles which perform well at elevated operating temperatures and in extreme thermal overloads.

The ability to withstand short-circuit forces is verified with FEA software.

Discover more

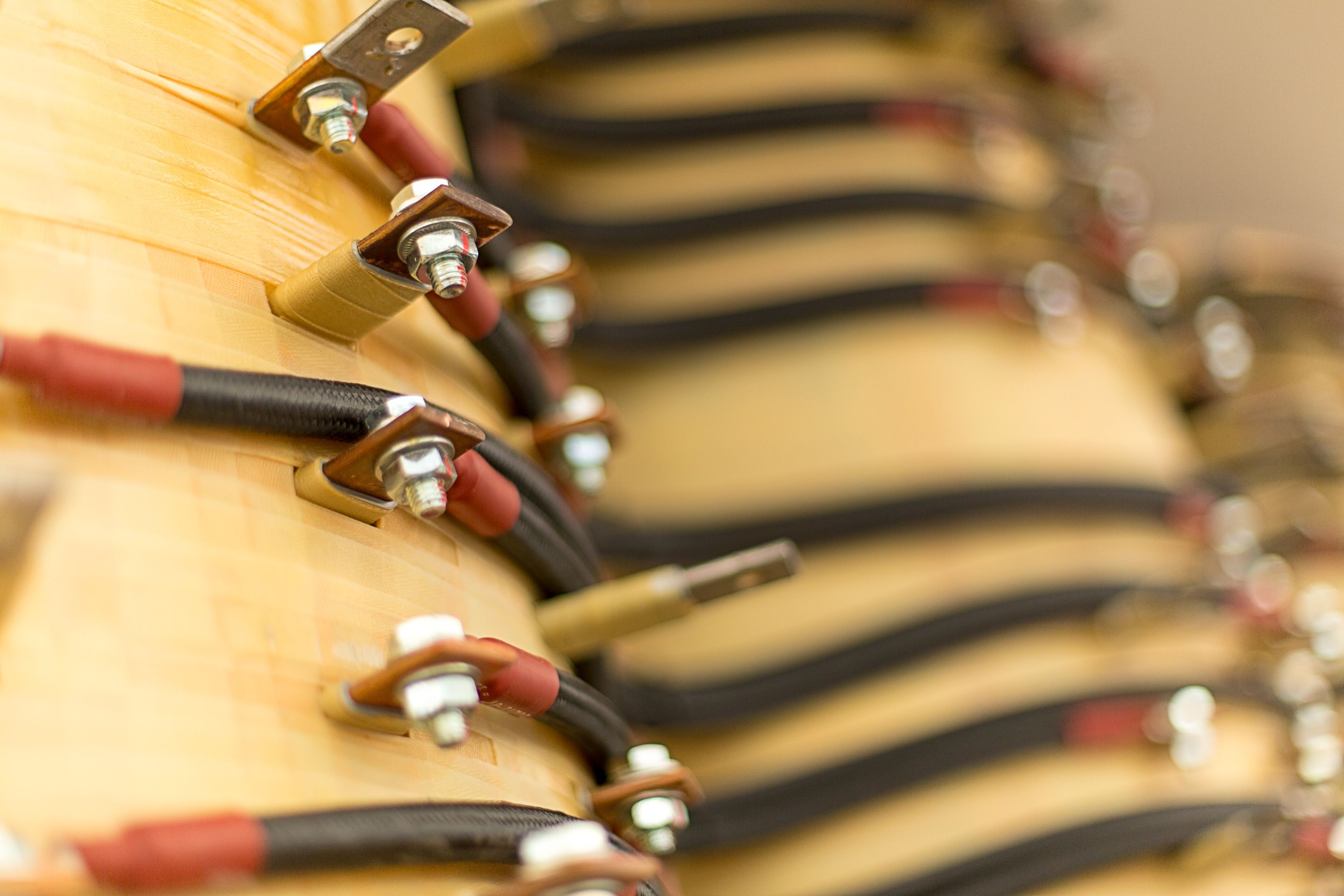

Produced in a vacuum chamber - resin introduced under pressure to improve impregnation

Cooling channels make for an efficient solution

Copper or aluminium winding

Fireproof materials

Our products

Transformer for naval propulsion

Electrical propulsion systems have many advantages compared to conventional engine-driven propulsion systems. This technology naturally increases the demand for electrical propulsion on different vessels, such as cruise ships, container ships, and navy ships. Through technological advances and research, electrical propulsion systems are no longer limited to just small boats and vessels.

Power: 7,5MVA
Primary Voltage: 11kV, 60Hz
Secondary Voltage: 2 x 1,8kV
Cooling: air to water heat exchanger

Discover

Industrial converter transformers can be supplied from several kVA to many MVA. Gas Processing systems require large electrical pumps and compressors which are controlled by Transformer/ VSD systems.

Transformer for gas pumping station

Power: 9MVA
Primary Voltage: 33kV 50Hz
Secondary Voltage: 6 x 2kV
Cooling: air to air heat exchanger
Weight: 51,700 lbs

Discover

When installation space is limited and power density is critical, insulation systems with a higher thermal class may be useful.

The insulation system is also completely flame retardant and safe for installation in public areas.

Crane transformer

Power: 950kVA
Primary Voltage: 13.8 kV - 60Hz
Secondary Voltage: 0,415kV
Frequency: 60Hz
Cooling: AA
Weight: 6.380 lbs

Discover

Electrical propulsion systems have many advantages compared to conventional engine-driven propulsion systems.

This technology naturally increases the demand for electrical propulsion on different vessels, such as cruise ships, container ships, and navy ships. Through technological advances and research, electrical propulsion systems are no longer limited to just small boats and vessels.

Power: 7,5MVA
Primary Voltage: 11kV 60 Hz
Secondary Voltage: 2 x 1,8kV
Frequency: 60Hz
Cooling: air to water heat exchanger
Weight: 20,900 lbs
2 x 2 units for about 24 pulse
